Αρχική Σελίδα /Προϊόντα/περιστροφική ξηρότερη μηχανή/Chemicals Processing Rotary Drum Dryer For Fertilizer Pellet Production Line

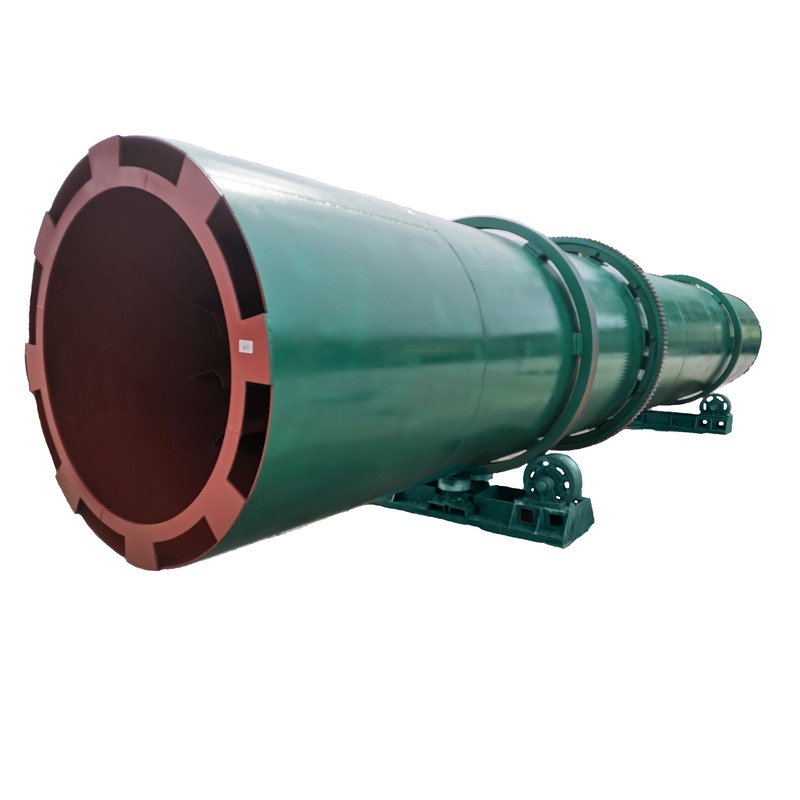

Chemicals Processing Rotary Drum Dryer For Fertilizer Pellet Production Line

1 Set
MOQ
$65,000.00(>=1 Sets)
τιμή
Chemicals Processing Rotary Drum Dryer For Fertilizer Pellet Production Line
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Drying equipment
Application: Chemicals Processing
Condition: New
Place of Origin: Heilongjiang, China
Μάρκα: Dadi
Voltage: 380V
Power: 7.5kw
Dimension(L*W*H): 13*1.5*1.8m
Key Selling Points: Competitive Price
Warranty: 1 Year
Weight (KG): 10000
Applicable Industries: Farms
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gearbox
Evaporation Capacity(kg/h): 5
Heating Method: Electric Heating
Material: Other
After-sales Service Provided: Engineers available to service machinery overseas
Color: Green or as your request
Inclination: 1-1.5°
Revolving speed (r/min): 3-8
Voltage:V: 380 V -50 HZ- 3 phase (it can be change under your need )
Βασικές πληροφορίες
Place of Origin: Heilongjiang, China
Μάρκα: Dadi
Πληρωμής & Αποστολής Όροι
Packaging Details: Our animal manure organic fertilizer granulator machine is loaded in the wooden cases then into the container
Supply Ability: 1 Set/Sets per Month
Περιγραφή προϊόντων

Rotary Drum Dryer for Fertilizer Granule Production Line

Product Description



Model

RDD-2

RDD-3

RDD-5

RDD-7

RDD-7A

Capacity: t/h

1-1.8

1.5-2.5

2.5-3.5

3.5-6

6-8

Temperature input required :

200-300 °C

Inclination

1-1.5°

1-1.5°

1-1.5°

1-1.5°

1-1.5°

Revolving speed (r/min)

3-8

3-8

3-8

3-8

3-8

Size of Cyclone (m)

1.3*1 *3.7

1.4*1 *3.7

1.4*1 *3.7

1.4

1.8*1.5*4.5

Size of fan (m)

1.5*0.8*1.1

1.5*0.8*1.1

1.5*0.8*1.1

2*1.4*1.2

2*1.4*1.2

Diameter of pipeline (m)

0.5

0.6

0.6

0.8

0.8

Power (dryer)(kW)

7.5

15

15

22

30

Power (fan)(kW)

15

15

22

30

45

Size L×W×H (m)

13*1.5*1.8

15.5*1.8*2

18.5*2.2*2.2

Φ1.8×20

22*2.4*3.6

Weight(Kgs)

8300

11300

13500

17500

18400

Voltage: V

380 V -50 HZ- 3 phase (it can be changed under your need )





Construction

The whole system composed by the following :

Combustion chamber ( Build by customer ).



1.Rotary drum dryer body

2.Pipe

3.Induced fan

4.Sealing cover

5.Ring gear

6.Supporting base

7.Cyclone dust catcher

8.Motor & Reduction gear device

9.Lifting impeller








Rotary Drum Dryer adopts slightly tilted drum which can be rotated. The wet materials are sent to hopper of rotary drum by belt conveyor or bucket elevator from the higher side. Well-dried materials are collected from the other lower side, and then hot air enters the drum from the feeding side to the discharging side.





Packaging & Shipping



We will choose different packaging according to the different products.







Our Services

Certificate:







Customer with us:
