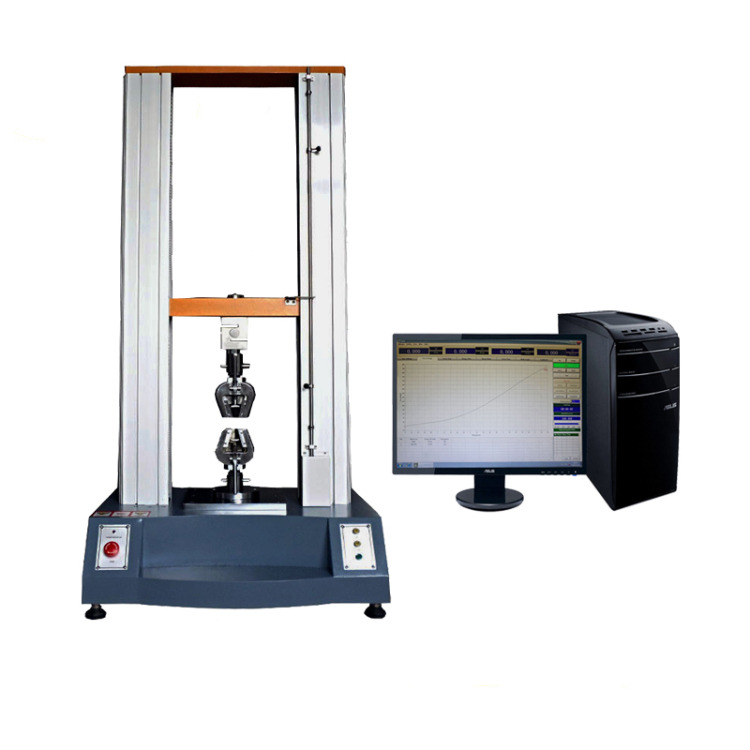

Computer Servo Zwick Tensile Strength Testing Machine with Large Deformation

ZL-8002B Computer Servo Tensile Test Machine with Large Deformation is designed by our company which is made of aluminum, it is not only small, used widely,do not take up space, nice appearance, but also easy to move with the hoop, it is very convenient to operate. It is controlled by computer and printing out the testing report; The outward appearance used the closing board dealing with high-level baking varnish, which obviously elegant appear. It especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2KN.

Main functions:

This testing machine is applied to the flexible material in tension, tear, adhesive strength, peel (90 degrees and 180 degrees) and others, such as rubber, plastic, plastic film and others. It is equipped with extensometer which special used to measure the deformation of specimen, it suitable to test the large deformation of material

Main feature:

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.

Corresponding standard :

GB/T16491-1996 electronic universal testing machine

Technical parameter:

Software features:

1.The software description about Desktop computer type servo tensile testing machine

A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.

B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.

C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)

D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

F. Test results can be output in EXCEL format.
G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.

H. Software has a capability that can output the before data.

2. The accessories about Desktop computer type servo tensile testing machine

A. warranted book within one-year and operating instructions.

B. a group of fixture

C. testing software for tensile machine.

D. a set of brand computer, color printer
